Headphone speaker

Showing 1–12 of 25 results

※ 8 ohm impedance is standard however additional impedances are available if required.
※ The models shown in this website are standard. Special designs and specifications are welcome.
※ To indicate the preferred models required please specify the following:
Size, total Depth, Shape, Rated power, Impedance, Resonant Freq, and S.P.L.

	Model	Size (mm)	Shape	Impedance (ohm)	Rated Power (W)	Max Power(W)	S.P.L. (dB)	Fo (Hz)

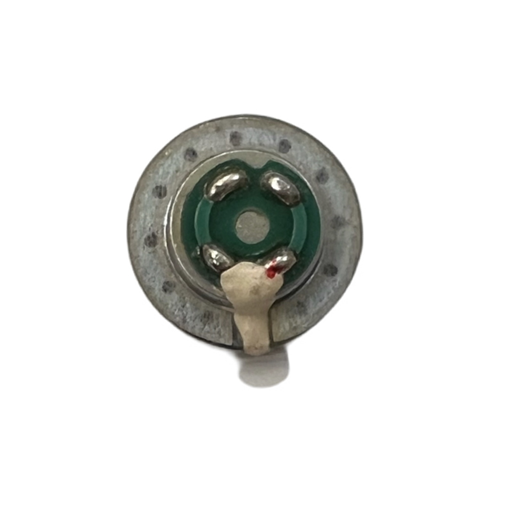

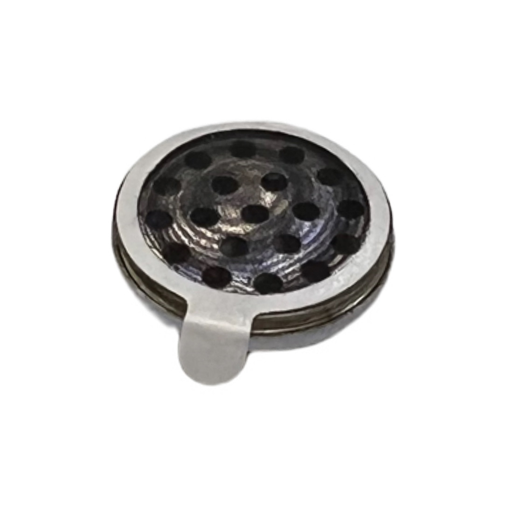

	GC0148MGX-7	Φ15 × 5.1	Round	90	0.005	0.01	118	300
	GC0158MGX-1 ASSY	Φ15 × 6.2	Round	32	0.1	0.2	91	700
	GF0271MX ASSY	Φ27 × 7.6	Round	32	0.03	0.1	86	250
	GC0272MGX	Φ27 × 7.1	Round	32	0.03	0.1	90	210
	GC0282MX	Φ28 × 5.7	Round	300	0.03	0.1	92	300
	GC0282MGX	Φ28 × 7.2	Round	300	0.03	0.1	92	300
	GC0302MX	Φ30 × 5.6	Round	150	0.01	0.02	98	220
	GC0305MGX	Φ30 × 7.5	Round	100	0.05	0.1	116	90
	GC0362MX	Φ36 × 5.8	Round	32	0.02	0.05	124	120
	GF0401MX	Φ40 × 9.3	Round	8	0.04	0.1	122	180
	GC0402M-1X	Φ40 × 6.3	Round	600	0.025	0.07	122	120
	GC0403MX-2	Φ40 × 7.4	Round	32	0.03	0.1	119	130
	GC0442MX-1	Φ44 × 8.4	Round	32	0.01	0.02	120	90
	GC0443MX-1	Φ44 × 10.4	Round	38	0.01	0.02	122	80
	GC0506MX-2	Φ50 × 10.8	Round	38	0.02	0.05	120	120
	GC0503MX	Φ50 × 8.7	Round	32	0.03	0.05	114	90
	GC0533MGX	Φ53 × 13	Round	39	0.03	0.05	117	100
	GC0575MX	Φ57 × 13	Round	38	0.02	0.03	121	80
	GC0575MRX	Φ57 × 12	Round	38	0.01	0.03	116	120
	GC0306MGJ	Φ30 × 7.7	Round	32	0.01	0.03	113	70
	GC0406MJ	Φ40 × 7.4	Round	32	0.02	0.05	113	80
	GC0504MJ	Φ50 × 8.7	Round	32	0.01	0.03	112	110
	GC0404MR	Φ40 × 7.3	Round	32	0.015	0.03	113	100
	GC0504MR	Φ50 × 8.5	Round	23	0.015	0.03	108	60
	GC0534MR	Φ53 × 9	Round	23	0.015	0.03	112	110

Size(mm):	Φ15 x 5.1
Impedance(ohm):	90
Rated Power(W):	0.005
S.P.L.(dB):	118 (IEC-318 1mw)
fo(Hz):	300

GC0158MGX-1 ASSY

Size(mm):	Φ15 x 6.2
Impedance(ohm):	32
Rated Power(W):	0.1
S.P.L.(dB):	91 (IEC-318 1mW)
fo(Hz):	700

Size(mm):	Φ27 x 7.1
Impedance(ohm):	32
Rated Power(W):	0.03
S.P.L.(dB):	90 (IEC-318 1mW)
fo(Hz):	210

Size(mm):	Φ28 x 7.2
Impedance(ohm):	300
Rated Power(W):	0.03
S.P.L.(dB):	92 (IEC-318 1mW)
fo(Hz):	300

Size(mm):	Φ28 x 5.7
Impedance(ohm):	300
Rated Power(W):	0.03
S.P.L.(dB):	92 (IEC-318 1mW)
fo(Hz):	300

Size(mm):	Φ30 x 5.6
Impedance(ohm):	150
Rated Power(W):	0.01
S.P.L.(dB):	98 (IEC-318 1mW)
fo(Hz):	220

Size(mm):	Φ30 x 7.5
Impedance(ohm):	100
Rated Power(W):	0.05
S.P.L.(dB):	116 (IEC-318 1mW)
fo(Hz):	90

Size(mm):	Φ30 x 7.7
Impedance(ohm):	32
Rated Power(W):	0.01
S.P.L.(dB):	113 (IEC-318 1mW)
fo(Hz):	70

Size(mm):	Φ36 x 5.8
Impedance(ohm):	32
Rated Power(W):	0.02
S.P.L.(dB):	124 (IEC-318 1mW)
fo(Hz):	120

Size(mm):	Φ40 x 6.3
Impedance(ohm):	600
Rated Power(W):	0.025
S.P.L.(dB):	122 (IEC-318 1mW)
fo(Hz):	120

Size(mm):	Φ40 x 7.4
Impedance(ohm):	32
Rated Power(W):	0.03
S.P.L.(dB):	119 (IEC-318 1mW)
fo(Hz):	130

Size(mm):	Φ40 x 7.3
Impedance(ohm):	32
Rated Power(W):	0.015
S.P.L.(dB):	113 (IEC-318 1mW)
fo(Hz):	100
