IT application speaker

Showing 1–12 of 28 results

※ 8 ohm impedance is standard however additional impedances are available if required.
※ The models shown in this website are standard. Special designs and specifications are welcome.
※ To indicate the preferred models required please specify the following:
Size, total Depth, Shape, Rated power, Impedance, Resonant Freq, and S.P.L.

	Model	Size (mm)	Shape	Impedance (ohm)	Rated Power (W)	Max Power(W)	S.P.L. (dB)	Fo (Hz)
	GC0251KX	14 × 25 × 5.3	Rectangular	8	1	1.5	80	750
	GC0251PX	14 × 25 × 7.2	Rectangular	8	2	2.5	81	850

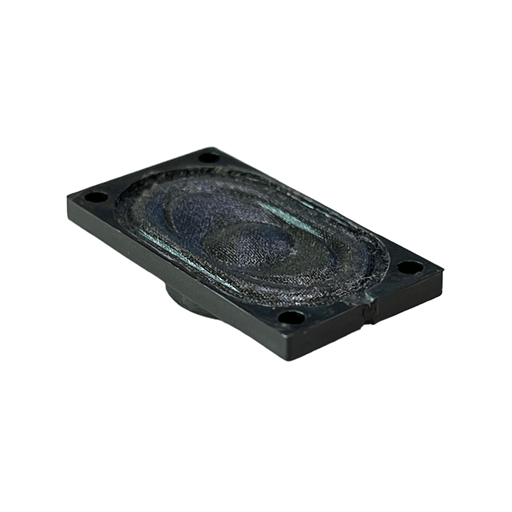

	GC0301KX	16 × 30 × 5	Rectangular	8	1	1.5	80	560

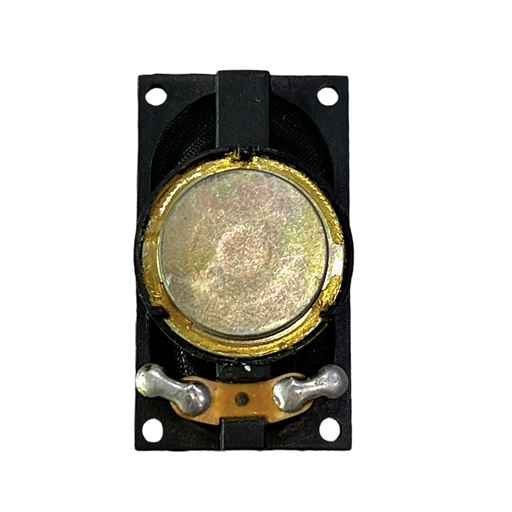

	GC0351KX	20 × 35 × 8	Rectangular	8	1	1.5	84	650

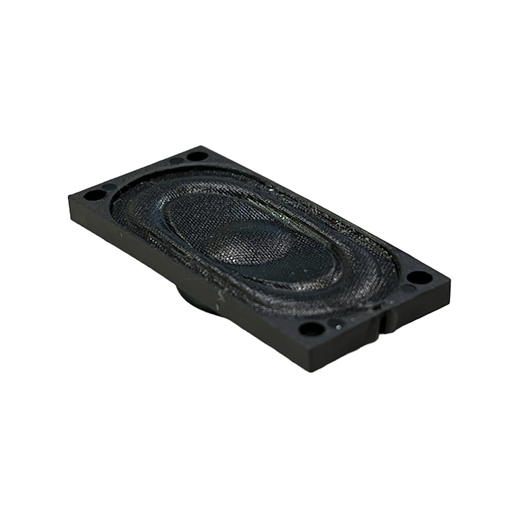

	GC0351MX	16 × 35 × 5	Rectangular	8	1	1.5	81	650

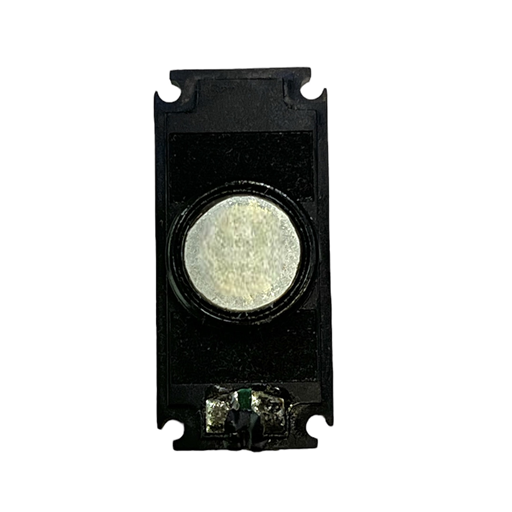

	GC0351M-3X	16 × 35 × 5	Rectangular	8	1	1.5	81	650

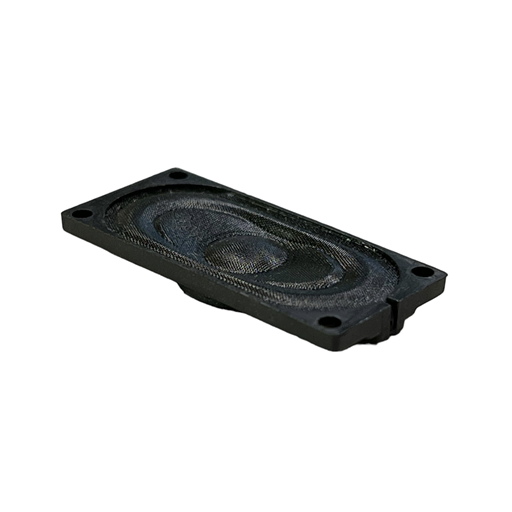

	GC0351NX	16 × 35 × 4.2	Rectangular	8	1	1.5	82	700
	GC0351PX	16 × 35 × 8	Rectangular	8	1	2	80	650

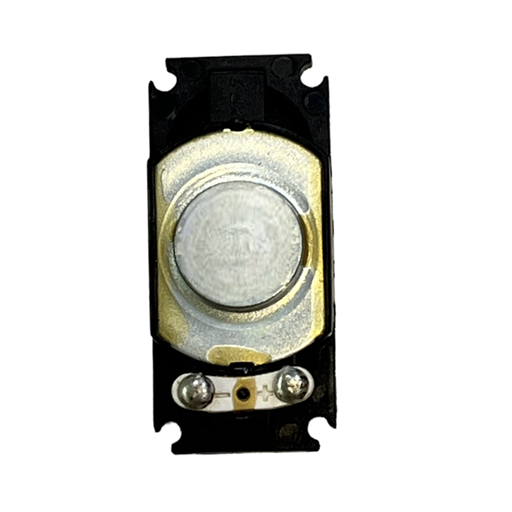

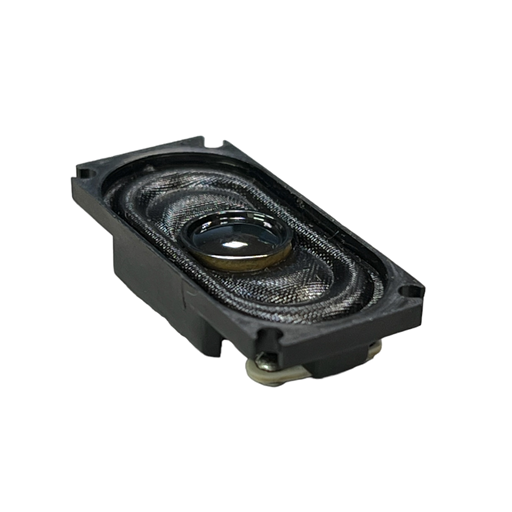

	GC0351P-1X	16 × 35 × 7.4	Rectangular	8	1	2	82	680

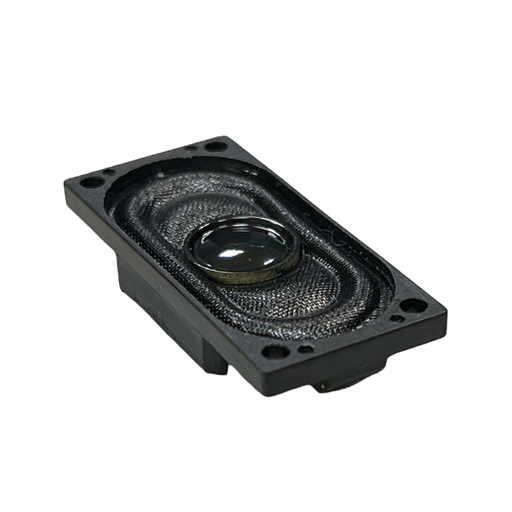

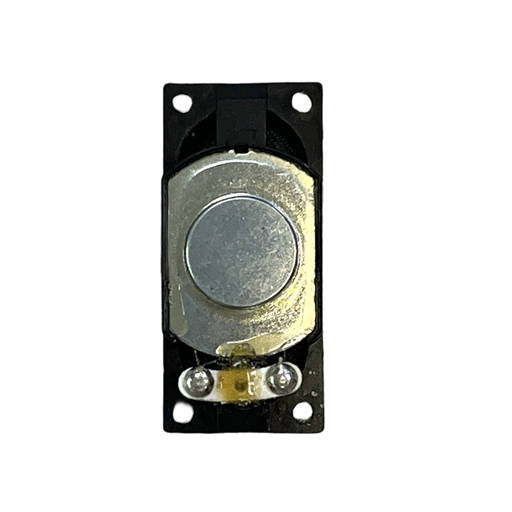

	GC0351P-3X	16 × 35 × 7.4	Rectangular	4	1	2	82	630
	GC0401KX	28.5 × 40 × 11.5	Rectangular	8	1	2	82	390
	GC0401K-3X	28.5 × 40 × 11.5	Rectangular	8	1	2	82	390
	GC0401LSX	22 × 40 × 13	Rectangular	8	2	3	86	500
	GC0401LX	28.5 × 40 × 13	Rectangular	8	2	4	85	430
	GC0401LBX	28.5 × 40 × 14	Rectangular	8	2	4	85	450
	GC0401SX	20 × 40 × 8	Rectangular	8	1	1.5	88	650
	GC0401SPNX	20 × 40 × 9	Rectangular	8	2	3	89	550

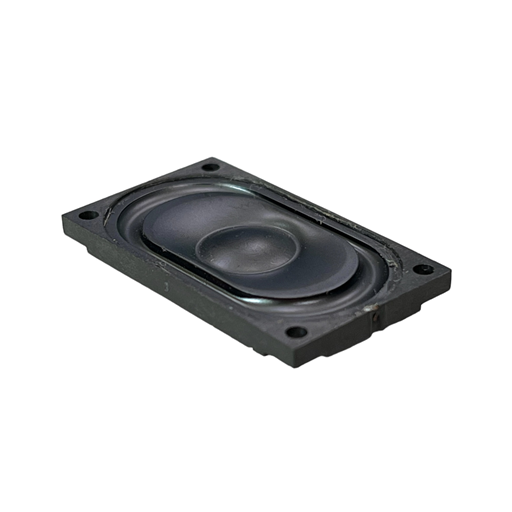

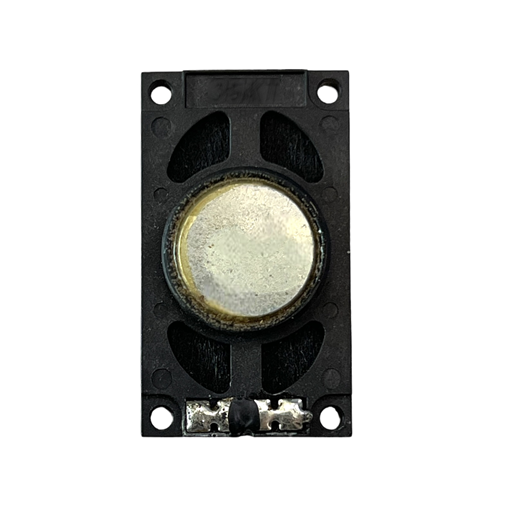

	GC0351TX	20 × 35 × 5.6	Rectangular	8	1	2	82	560
	GC0401TX	20 × 40 × 5.8	Rectangular	8	1	1.5	83	520
	GC0401T-2X	20 × 40 × 5.8	Rectangular	8	1.5	2	86	900
	GC4020UX	20 × 40 × 9.4	Rectangular	4	3	4	84	600
	GC0351KF-1X	20 × 35 × 5.5	Rectangular	8	1	2	84	650
	GC0401KF-3X	20 × 40 × 5.8	Rectangular	8	2	3	80	700
	GC2540MI08	25 x 40 x 7.3	Rectangular	8	2	3.5	80	740
	GC2535MN16-1	25 x 35 x 6.5	Rectangular	16	1	1.5	91	550
	GC2030MN04-1	20 x 30 x 6.5	Rectangular	4	1	2	86	800
	GC1625MN08	16 x 25 x 5	Rectangular	8	1	1.5	98	860
	GC1217MI08-1	12 x 17 x 3.8	Rectangular	8	1	1.5	84	900

Size(mm):	14 x 25 x 5.3
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	80 (1W 50cm)
fo(Hz):	750

Size(mm):	14 x 25 x 7.2
Impedance(ohm):	8
Rated Power(W):	2
S.P.L.(dB):	81 (1W 50cm)
fo(Hz):	850

Size(mm):	16 x 30 x 5
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	80 (1W 50cm)
fo(Hz):	560

Size(mm):	20 x 35 x 5.5
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	84 (1W 50cm)
fo(Hz):	650

Size(mm):	20 x 35 x 8
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	84 (1W 50cm)
fo(Hz):	650

Size(mm):	16 x 35 x 5
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	81 (1W 50cm)
fo(Hz):	650

Size(mm):	16 x 35 x 5
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	81 (1W 50cm)
fo(Hz):	650

Size(mm):	16 x 35 x 4.2
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	82 (1W 50cm)
fo(Hz):	700

Size(mm):	16 x 35 x 7.4
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	82 (1W 50cm)
fo(Hz):	680

Size(mm):	16 x 35 x 7.4
Impedance(ohm):	4
Rated Power(W):	1
S.P.L.(dB):	82 (1W 50cm)
fo(Hz):	630

Size(mm):	16 x 35 x 8
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	80 (1W 50cm)
fo(Hz):	650

Size(mm):	20 x 35 x 5.6
Impedance(ohm):	8
Rated Power(W):	1
S.P.L.(dB):	82 (1W 50cm)
fo(Hz):	560
