PCB mounting speaker

Showing all 10 results

※ 8 ohm impedance is standard however additional impedances are available if required.
※ The models shown in this website are standard. Special designs and specifications are welcome.
※ To indicate the preferred models required please specify the following:
Size, total Depth, Shape, Rated power, Impedance, Resonant Freq, and S.P.L.

	Model	Size (mm)	Shape	Impedance (ohm)	Rated Power (W)	Max Power(W)	S.P.L. (dB)	Fo (Hz)
	GC0201MAP-1X	Φ20 × 3.2	Round	8	0.5	1	82	850
	GC0201MPX	Φ20 × 4.3	Round	8	0.1	0.2	78	850
	GC0231MP-1X	Φ23 × 4.9	Round	8	0.1	0.2	72	480
	GC0281MPX	Φ28 × 4.2	Round	8	0.2	0.3	82	1000

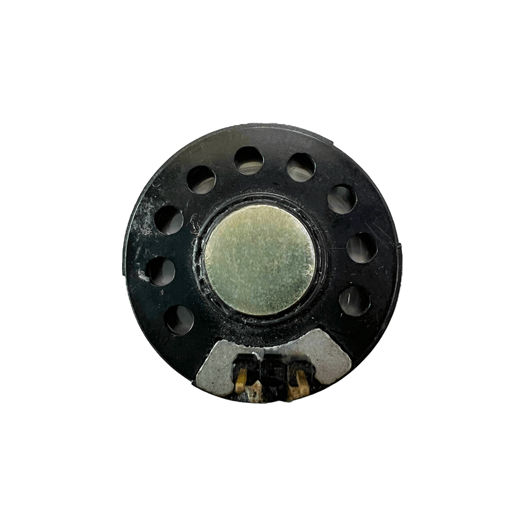

	GC0301MP-1X	Φ30 × 3.9	Round	8	0.2	0.3	78	500
	GF0381MP-1X	Φ38 × 9.4	Round	8	0.25	0.4	93	380
	GC0432MPX	40 × 43 × 5.6	Rectangular	8	0.5	1	84	550
	GC0454MAPX	Φ45 × 5	Round	32	0.5	1	86	420
	F23H-2X-1	Φ23 × 8.5	Round	8	0.1	0.2	74	1300
	F23H-3X	Φ23 × 10	Round	8	0.1	0.2	73	850

Size(mm):	Φ23 x 8.5
Impedance(ohm):	8
Rated Power(W):	0.1
S.P.L.(dB):	74 (0.1W 50cm)
fo(Hz):	1300

Size(mm):	Φ23 x 10
Impedance(ohm):	8
Rated Power(W):	0.1
S.P.L.(dB):	73 (0.1W 50cm)
fo(Hz):	850

Size(mm):	Φ20 x 3.2
Impedance(ohm):	8
Rated Power(W):	0.5
S.P.L.(dB):	82 (0.5W 50cm)
fo(Hz):	850

Size(mm):	Φ20 x 4.3
Impedance(ohm):	8
Rated Power(W):	0.1
S.P.L.(dB):	78 (0.1W 50cm)
fo(Hz):	850

Size(mm):	Φ23 x 4.9
Impedance(ohm):	8
Rated Power(W):	0.1
S.P.L.(dB):	72 (0.1W 50cm)
fo(Hz):	480

Size(mm):	Φ28 x 4.2
Impedance(ohm):	8
Rated Power(W):	0.2
S.P.L.(dB):	82 (0.2W 50cm)
fo(Hz):	1000

Size(mm):	Φ30 x 3.9
Impedance(ohm):	8
Rated Power(W):	0.2
S.P.L.(dB):	78 (0.2W 50cm)
fo(Hz):	500

Size(mm):	40 x 43 x 5.6
Impedance(ohm):	8
Rated Power(W):	0.5
S.P.L.(dB):	84 (0.5W 50cm)
fo(Hz):	550

Size(mm):	Φ45 x 5
Impedance(ohm):	32
Rated Power(W):	0.5
S.P.L.(dB):	86 (0.5W 50cm)
fo(Hz):	420

Size(mm):	Φ38 x 9.4
Impedance(ohm):	8
Rated Power(W):	0.25
S.P.L.(dB):	93 (0.1W 50cm)
fo(Hz):	380
